Brickyard Station
Surrey, B.C.
Project Size
ROOF: 69,930 SQ.FT. WALLS: 20,145 SQ.FT.
General Contractor
Ventana Construction Corp.
Location
Surrey, B.C.
Systems Used
Scope of Work
SBS Roofing
- 1/4" Densdeck prime
- Self adhered vapour barrier
- 2 layers of 1.7" polyiso insulation
- 2 ply Soprafix SBS roofing system
- 10 year manufacturer's system warranty
EPDM Roofing
- 1/4" Densdeck prime
- Self adhered vapour barrier
- 2 layers of 1.7" polyiso insulation
- .060" EPDM loose laid
- 1 1/2" nominal water worn ballast
- 24 gauge prefinished metal flashing
- 10 year manufacturer's system warranty
Fascia Panels
- 24 gauge prefinished shop fabricated panels
Wall Cladding
- Various profiles of 24 gauge prefinished metal cladding
- Cladding installed on 20 gauge Z bar
- Self adhered air barrier
Retail Roofing Case Study
Brickyard Station Roofing Case Study
Raven Roofing delivered approximately 69,930 square feet of SBS and ballasted EPDM roofing plus 20,145 square feet of metal wall cladding and fascia systems at Brickyard Station.
Building Type
Multi-Building Retail Centre
Owner
Brickyard Station
Completed
2012
The Project
Brickyard Station is a five-building retail and commercial centre at Highway 10 and 175 Street in Cloverdale. Its varied tenant spaces and roof zones created a substantial set of perimeter, curb, penetration, drainage and wall-envelope interfaces.
Raven's package combined two commercial membrane systems with shop-fabricated fascia and multiple profiles of metal wall cladding.
Roofing Delivery

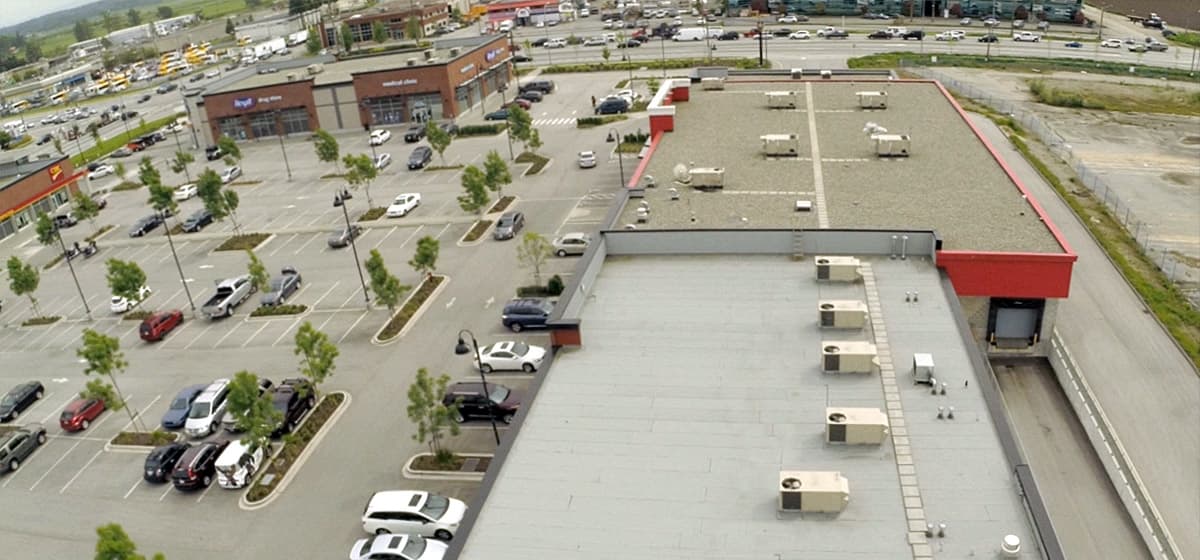

The SBS areas used DensDeck Prime, a self-adhered vapour barrier, two layers of polyiso insulation and a two-ply Soprafix system. The EPDM areas used a comparable insulated base with loose-laid 60-mil EPDM, water-worn ballast and prefinished metal flashing.

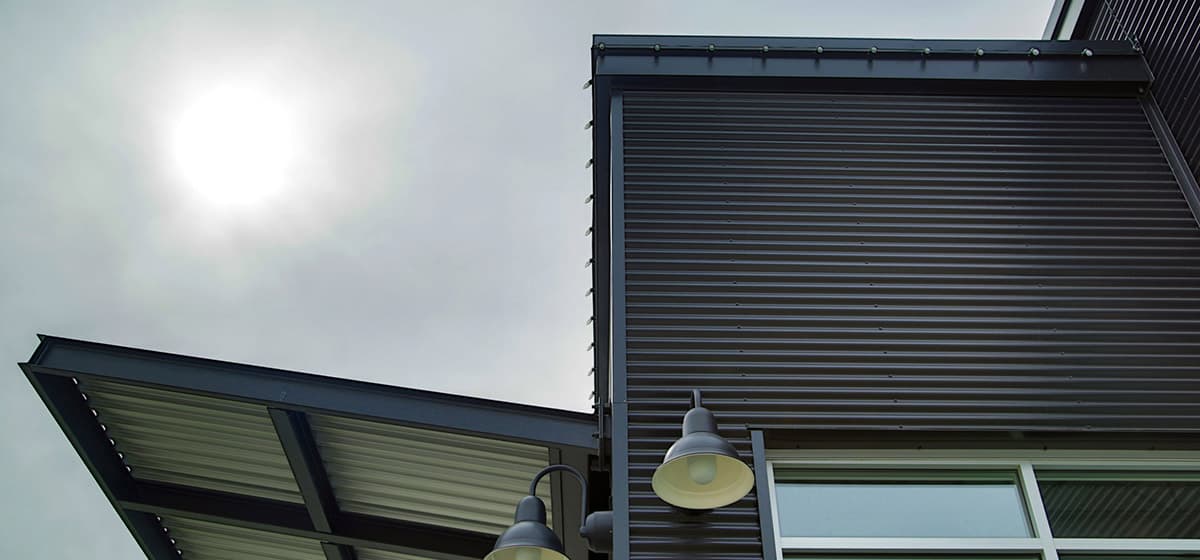

Architectural-metal work included 24-gauge fascia, multiple 24-gauge cladding profiles, 20-gauge Z-bar and a self-adhered air barrier. Both membrane assemblies carried 10-year manufacturer system warranties.
Why Multiple Roof Systems Can Fit a Retail Development
A multi-building shopping centre can contain zones with different spans, deck conditions, access requirements, tenant penetrations and loading. More than one specified membrane system can allow each building or zone to respond to its own design conditions.
Two-ply SBS provides layered bituminous protection where redundancy and robust detailing are priorities. Ballasted EPDM can cover broad suitable low-slope areas with relatively few seams while the ballast protects the membrane from direct exposure.
Together, the two systems provided durable low-slope roofing solutions across a large, multi-building retail development, with each assembly coordinated to its applicable roof areas and details.
Related Roofing Resources
SBS Modified Bitumen
Layered commercial roofing for durable low-slope assemblies.
EPDM Roofing
Flexible single-ply roofing for broad commercial roof areas.
Retail Roofing Operations Guide
Planning roofing work around retail tenants and building operations.
Commercial Roofing in Surrey
Raven's commercial roofing services across Surrey.
Frequently Asked Questions
What roof systems were used at Brickyard Station?
We installed both a two-ply Soprafix SBS assembly and a loose-laid 60-mil EPDM assembly with water-worn ballast.
Why can a retail development use more than one roof system?
Different buildings and roof zones can have different deck, loading, access and detailing requirements. Final system selection follows the consultant's project-specific design.
