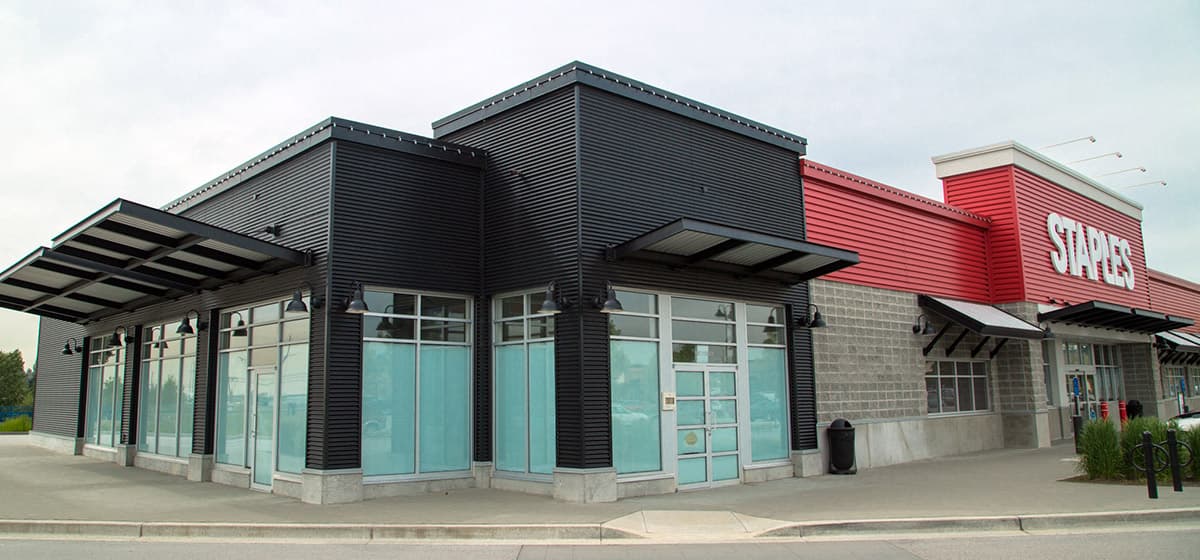

Brickyard Station

ROOF: 69,930 SQ.FT.
WALLS: 20,145 SQ.FT

Ventana
Construction Corp.

Surrey, B.C.

“The Raven team is extremely professional and a pleasure to work with.”
MAURICE CREAGH, DIRECTOR OF PROJECTS, VENTANA CONSTRUCTION CORP

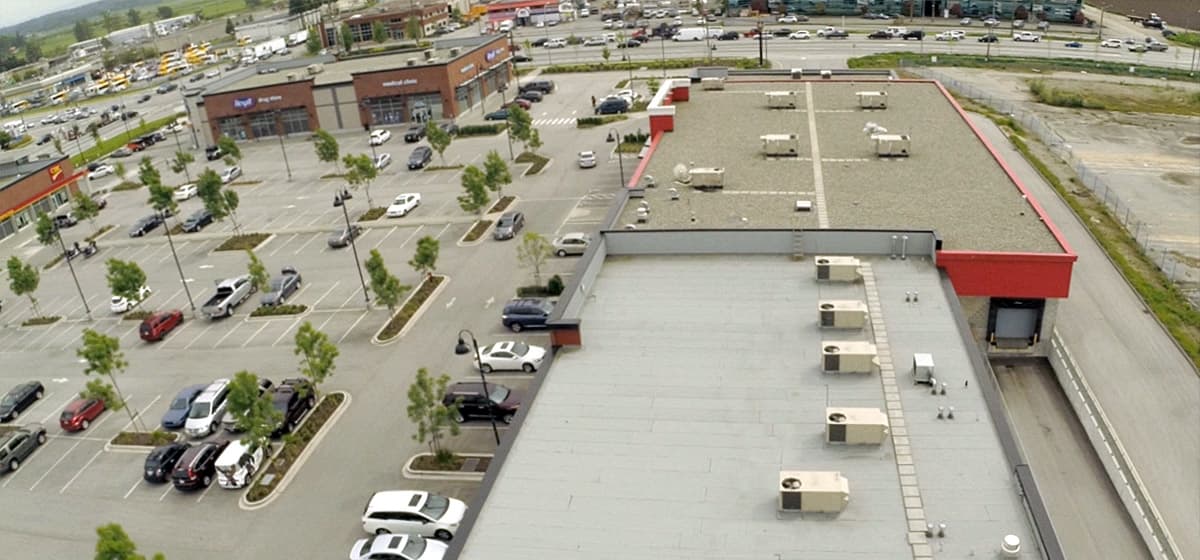

SBS ROOFING
¼” Densdeck prime
Self adhered vapour barrier
2 layers of 1.7” polyiso insulation
2 ply Soprafix SBS roofing system
10 year manufacturer’s system warranty

EPDM ROOFING
¼” Densdeck prime
Self adhered vapour barrier
2 layers of 1.7” polyiso insulation
.060” EPDM loose laid
1 ½” nominal water worn ballast
24 gauge prefinished metal flashing
10 year manufacturer’s system warranty

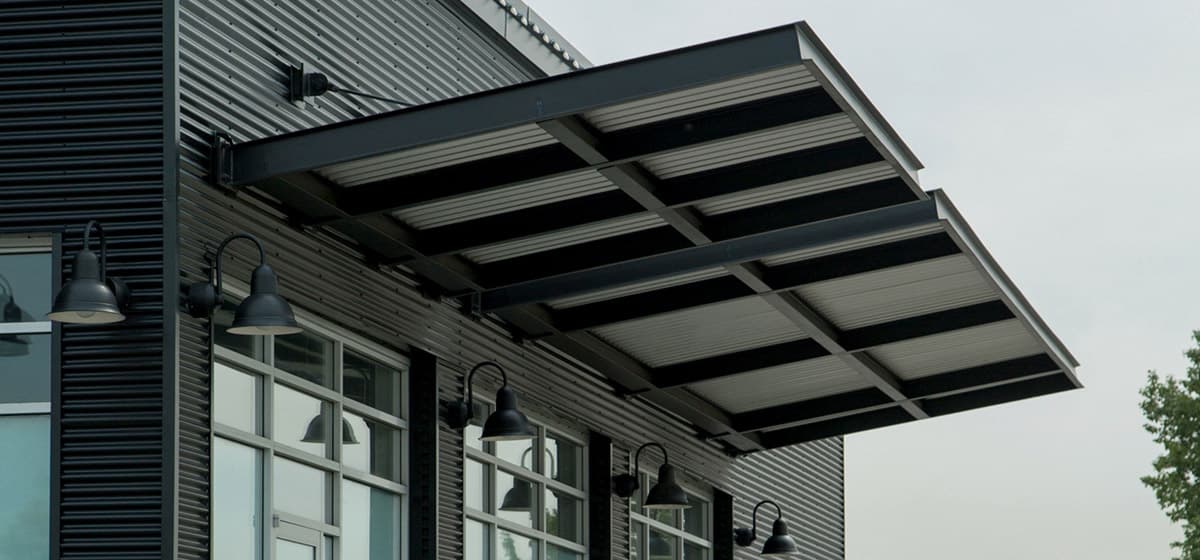

FASCIA PANELS
24 gauge prefinished shop fabricated panels

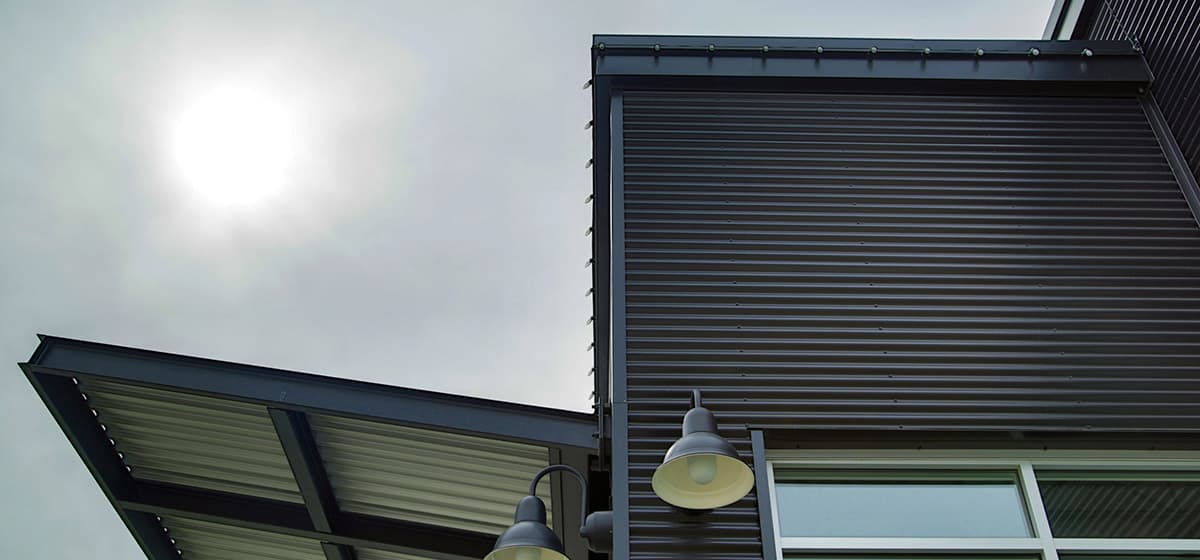

WALL CLADDING
Various profiles of 24 gauge prefinished metal cladding
Cladding installed on 20 gauge Z bar
Self Adhered air barrier
