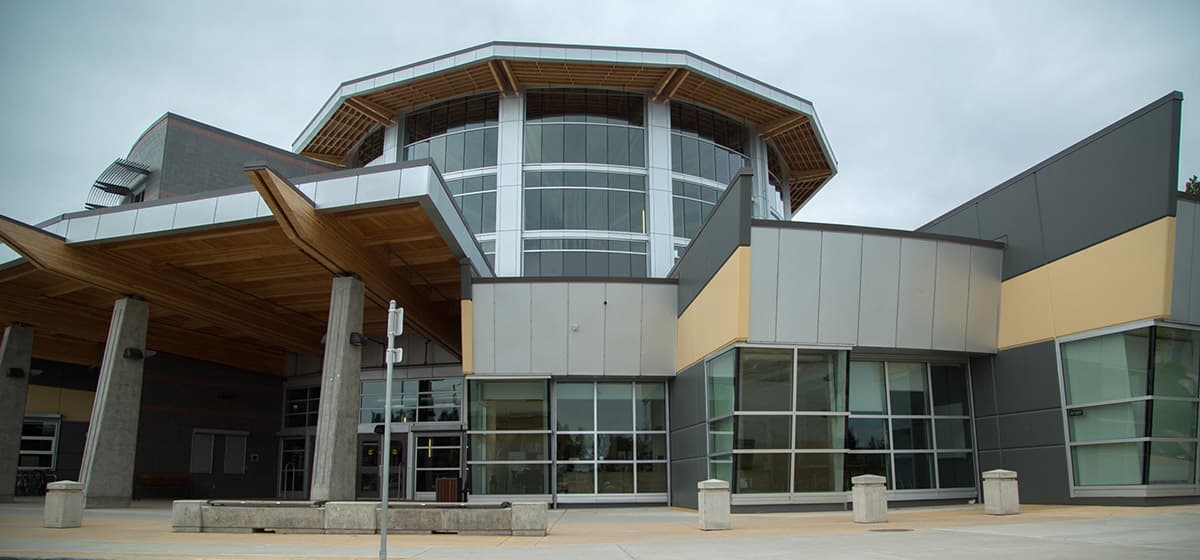

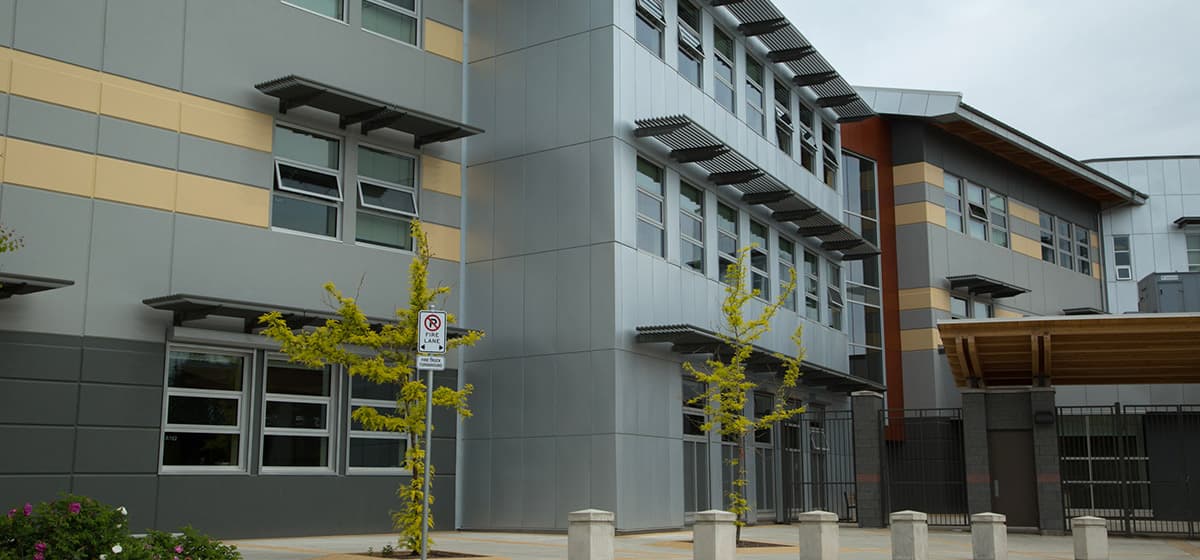

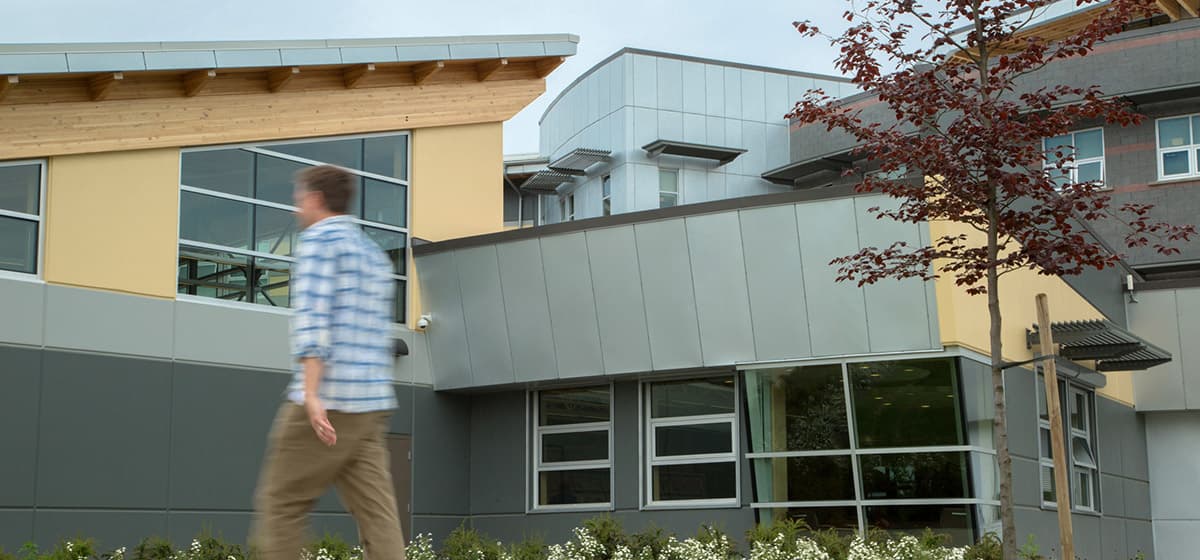

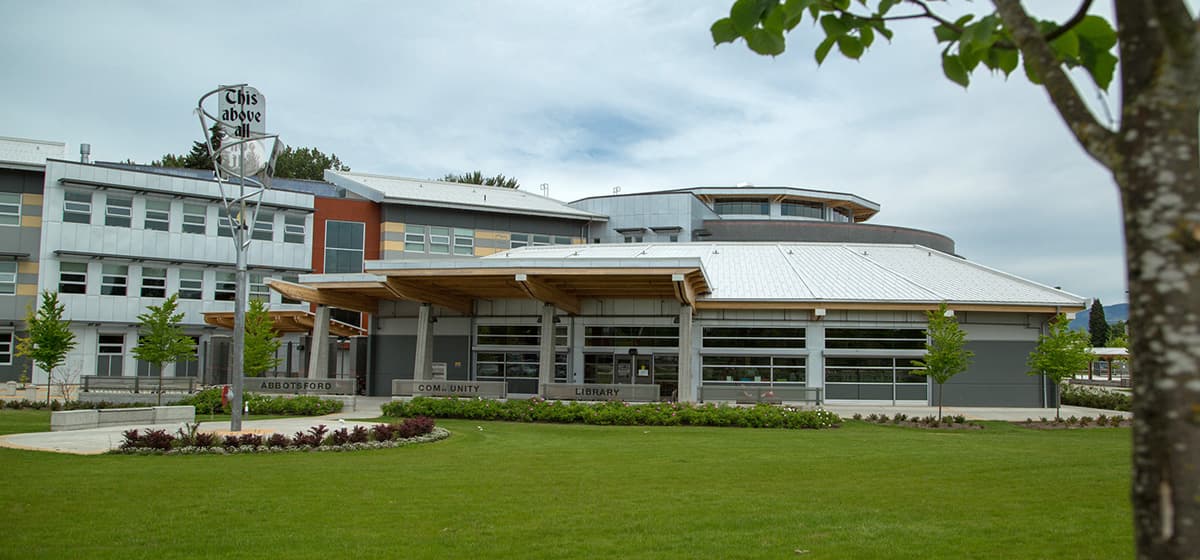

Abbotsford Collegiate / Library

ROOF: 15,200 SQ.FT.
WALLS: 23,500 SQ.FT.

Unitech Construction
Management Ltd

Abbotsford, B.C.

“Several of our site superintendents have expressed their preference in using Raven Roofing on our sites. test”
ALBERT TECKLENBORG, TECK CONSTRUCTION LLP

ROOFING
½” Densdeck prime
Mechanically fastened to structural deck
Self adhered vapor barrier
2 layers of 2” polyiso insulation
2 layers of 22 gauge Z bar
Titanium UDL 25 plus underlay
24 gauge prefinished standing seam metal panels
10 year RCABC warranty

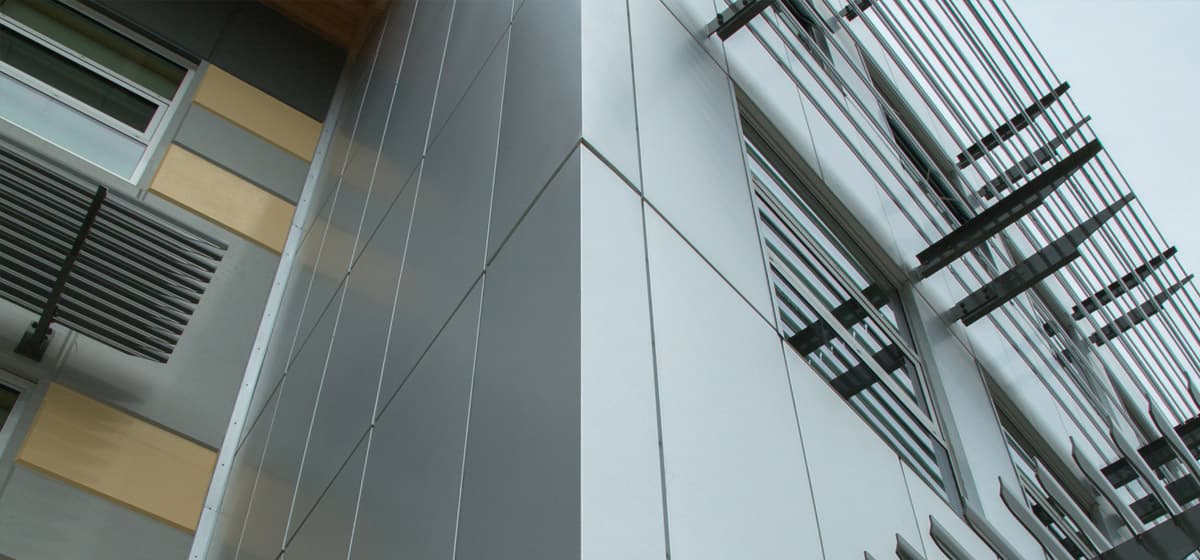

WALLS
Air barrier
2 layers of 2” Type 11 EPS insulation
2 layers of 22 gauge Z bar
Combination of 22 gauge galvalume shop fabricated panels and ACM Panels
